We think of the offset smoker chimney cap as the little roof over your smokestack: it sits at the top and shields the exhaust opening from rain, leaves, insects, and other outdoor debris. On many smokers, the cap is attached to an adjustable damper mechanism, allowing it to move higher or lower above the stack opening.
Here’s the balancing act we always come back to: the cap must protect the opening without restricting the exhaust path. An offset smoker depends on steady draft: fresh air enters the firebox, supports combustion, moves heat and smoke through the cooking chamber, and exits through the chimney. If a replacement cap sits too close to the opening or becomes blocked with soot, it can weaken that flow and contribute to dirty smoke or unstable temperatures.
In this guide, we’ll walk you through what an offset smoker chimney cap actually does, how it differs from a chimney damper, how to choose and install the correct design, and how to diagnose common exhaust problems.
An offset smoker chimney cap protects the smokestack from weather and debris while leaving enough clearance for smoke to escape. Use a model-compatible, heat-resistant cap and keep the exhaust sufficiently open during cooking.
Control most temperature changes through fire size and the firebox intake. Do not close the chimney cap tightly in an attempt to trap heat or increase smoke flavor, because restricted exhaust can produce stale, bitter smoke.
What Does an Offset Smoker Chimney Cap Do?
The chimney cap is just one part of your smoker’s exhaust system. It normally sits above the top rim of the chimney rather than sealing directly against it during cooking — that gap beneath the cap is what allows smoke, hot air, water vapor, and combustion gases to leave the smoker.
If you’re still getting familiar with how the firebox, cooking chamber, dampers, and chimney work together, our complete offset smoker guide explains the basic airflow path.
In our view, an offset smoker chimney cap earns its keep in three main ways. First, it reduces the amount of rain and snow that can fall directly into the stack. Second, it blocks larger debris such as leaves and nesting material. Third, when the cap is part of an adjustable damper assembly, it can change the exhaust opening within the limits intended by the smoker manufacturer.
Let’s set expectations honestly: the chimney cap does not create smoke flavor by itself, and it does not guarantee even temperatures across the cooking grate. Fire quality, intake airflow, chimney dimensions, smoker geometry, wind, fuel, and food placement all influence performance. A cap can support the exhaust system, but it cannot correct an oversized, smoldering, or poorly ventilated fire.
Chimney Cap, Damper and Stack Extension: What Is the Difference?
We see these components described as though they’re the same thing, but they perform different jobs — so let’s clear that up.
| Component | Location and design | Primary purpose |
| Chimney cap | Hood or plate above the stack opening | Limits rain and debris entry |
| Chimney damper | Adjustable plate, flap, or raised cap mechanism | Changes the exhaust opening |
| Smokestack | Vertical exhaust pipe | Creates a path for heat and smoke to leave |
| Stack extension | Additional compatible pipe length | Changes stack height and may affect draft |
| Spark screen | Mesh barrier in or near the exhaust | Reduces escaping embers but requires regular cleaning |
Some factory assemblies combine a rain cap and damper in one part — turning or moving the handle changes the distance between the cap and the chimney opening. Other smokers use a fixed rain hood with a separate butterfly damper inside the stack.
Here’s a mistake we want to help you avoid: don’t assume a residential fireplace or wood-stove cap is suitable for a barbecue smoker. An incompatible part may be too heavy, use an unsafe coating, provide insufficient heat resistance, or restrict the much smaller exhaust opening.
Model compatibility really matters here. Char-Griller, for example, sells model-specific smokestack damper replacements for particular offset smokers rather than presenting one cap as universal for every cooker.
Benefits and Limitations of a Chimney Cap
A properly fitted offset smoker chimney cap can protect the exhaust opening without interfering with your cooking. Here’s what we consider its most useful benefits:
- Keeps direct rain and snow out of the stack
- Stops leaves and larger debris from getting into the stack
- Protects the opening while the smoker sits in storage
- Gives you the factory-designed exhaust adjustment when paired with a damper
- Reduces water pooling inside an uncovered outdoor smoker
- Replaces a bent, missing, or heavily corroded original part
- Keeps your smokestack looking and working the way it was designed to
We’d be doing you a disservice if we oversold it — these benefits have limits. Wind-driven rain can still enter beneath an open cap, and condensation can form inside the chimney even when outside rain is blocked. A cap also does not replace a fitted weather cover, dry storage, rust treatment, or regular cleaning.
It won’t “push” smoke evenly into the meat either — clean smoke moves through the chamber because of combustion and draft, not because the cap forces it in. Restricting the exhaust to hold smoke around the food can create a harsh flavor rather than deeper, cleaner smoke penetration.
Common Types of Offset Smoker Chimney Caps
Fixed Rain Hood
A fixed offset smoker chimney cap stays at a set distance above the stack and never moves. Its sloped or curved surface sheds rain while leaving the exhaust path open around the sides. This simple design has no temperature-control mechanism, so it should be sized specifically for the chimney.
A fixed hood can work well when you manage heat through the fire, the firebox door, and the intake damper. Just keep the surrounding clearance generous enough that the hood never becomes an exhaust restriction.

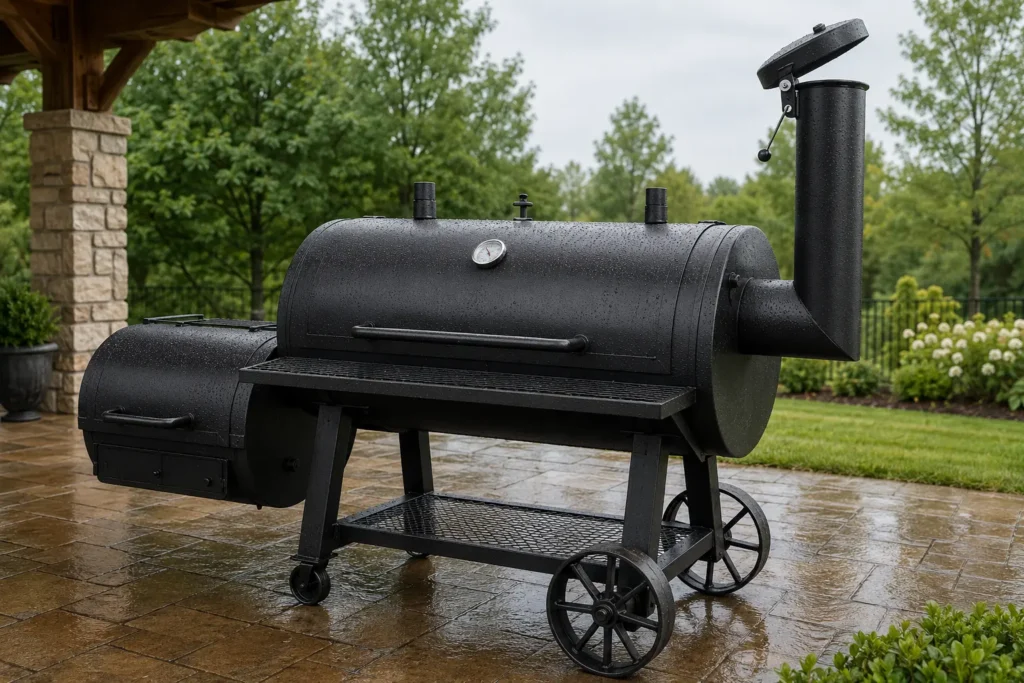

Adjustable Screw Cap
An adjustable offset smoker chimney cap travels up or down on a threaded rod — raise it to open the exhaust gap wider, lower it to narrow the gap. We see this design a lot on backyard barrel smokers and combination grill-smokers.
This cap should move freely without wobbling or binding — grease, soot, rust, bent hardware, or damaged threads can all make accurate adjustment impossible. And during a cook, never lower it so far that clean exhaust flow stops.

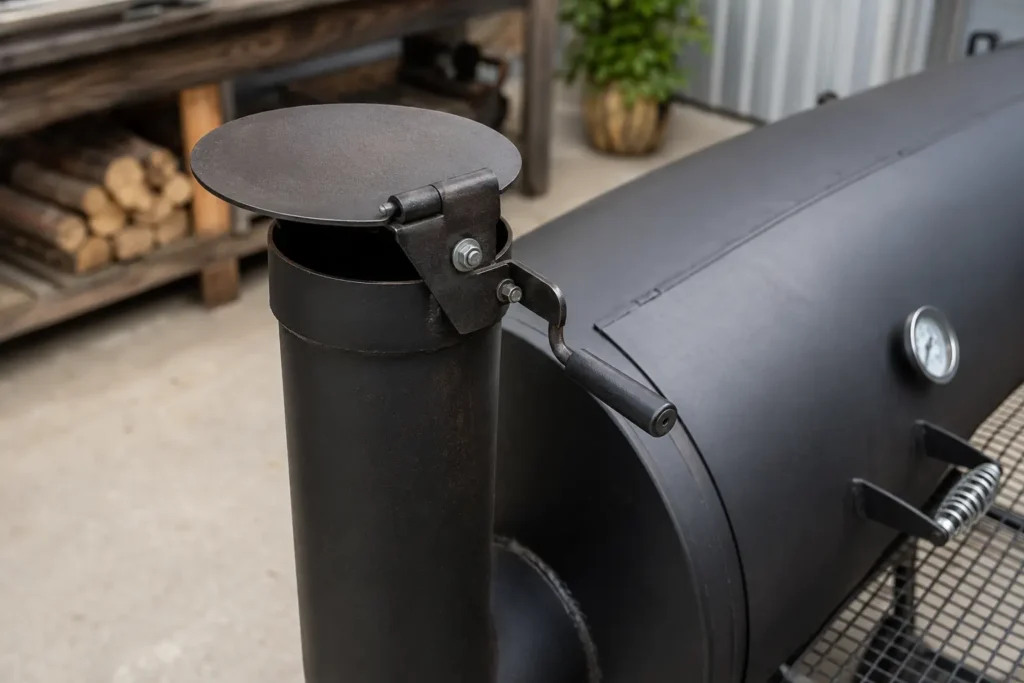

Hinged or Butterfly Damper
A hinged damper rotates over the stack opening, while a butterfly damper pivots inside the exhaust pipe. Both regulate the opening, though neither sheds rain quite as well as a full hood.
Some smokers pair a damper with a separate rain shield. We recommend sticking with the arrangement specified for your exact model, since the operating position and replacement hardware can vary.
Wind-Resistant or Directional Cap
A directional offset smoker chimney cap is meant to keep wind from entering the stack, but it demands careful selection. A cap made for a building chimney may be a poor match for an offset smoker and can add excessive restriction.
Before buying a directional cap, try improving your smoker’s placement first. Turning the stack away from the strongest wind, or setting up a safe noncombustible windbreak, is usually simpler than modifying the exhaust. And never operate the smoker in an enclosed location.
7 Essential Tips for Choosing and Installing the Right Cap
1. Confirm the exact smoker model. Start with the manufacturer name, model number, smokestack design, and existing hardware. Smokers that look alike can still use different chimney diameters, threaded rods, brackets, or damper assemblies. A factory replacement is usually the safest choice, because its clearance and mounting method were designed for that exhaust. Our Char-Broil American Gourmet Offset Smoker guide shows why model-specific chimney and damper layouts matter.
2. Measure the stack accurately. Take the outside diameter of the chimney and the dimensions of the mounting point. For an adjustable offset smoker chimney cap, also note the rod diameter, thread type, bracket spacing, and required open height. Don’t size an exhaust part from cooking capacity or barrel size alone.
3. Choose heat-safe, corrosion-resistant material. Stick with steel, stainless steel, or another material the smoker or cap manufacturer approves. Skip galvanized, painted, plastic-coated, or unidentified metal parts unless the manufacturer explicitly confirms they’re safe at smoker exhaust temperatures.
4. Preserve exhaust clearance. The offset smoker chimney cap needs adequate space around the stack opening. Too little clearance can restrict draft, while excessive height may reduce weather protection or let the cap wobble in wind. Follow the model-specific installation dimensions rather than guessing.
5. Secure the hardware. Use the supplied fasteners, brackets, washers, springs, and retainers. The cap should never rattle loose, fall into the cooking area, or blow away. Don’t improvise with adhesives, plastic ties, or hardware that can’t withstand heat and outdoor exposure.
6. Test the movement before lighting a fire. Open and close an adjustable offset smoker chimney cap through its complete intended range. Make sure it moves smoothly, stays aligned with the stack, and can’t accidentally seal the exhaust while cooking.
7. Perform a controlled test burn. Start with a small clean fire and the exhaust open. Watch for smoke leaking from the cooking-chamber lid or firebox instead of exiting the chimney. Compare grate-level temperature behavior before and after the installation, and stop using the cap if the fire repeatedly smolders or the exhaust becomes visibly restricted.
We advise against drilling, cutting, or welding the smokestack unless the manufacturer permits the modification and you have the correct tools and experience. Metalwork can damage protective coatings, create sharp edges, weaken the stack, or produce unsafe alignment. A qualified fabricator can make a model-specific replacement when the original part is unavailable.

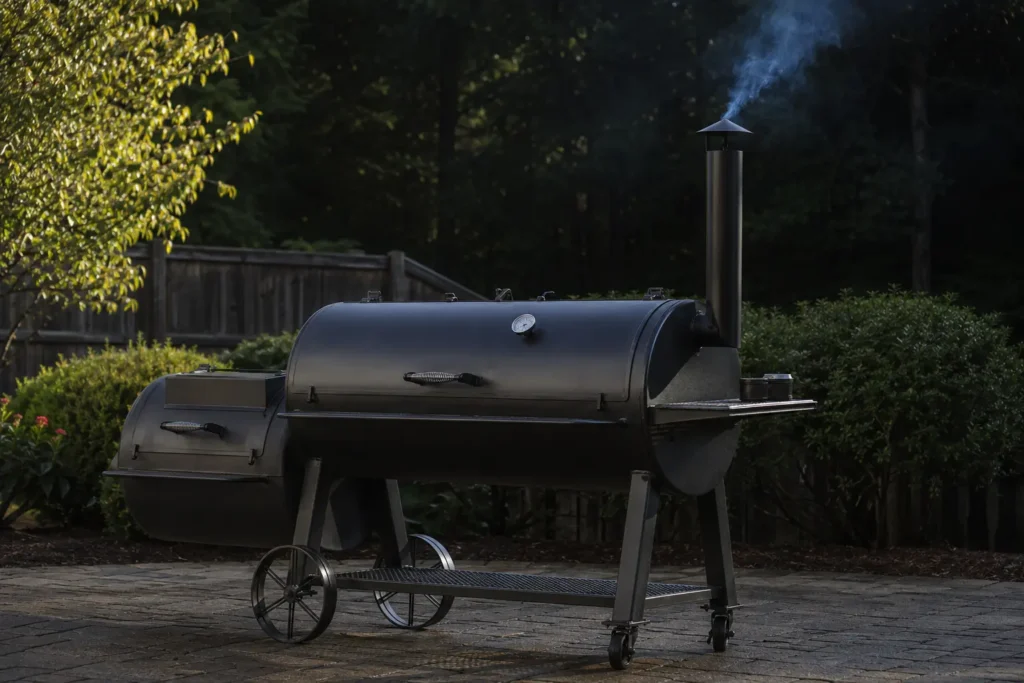

How the Chimney Cap Affects Airflow and Temperature
We think of an offset smoker as a connected system. Oxygen enters through the firebox intake, the fire releases heat and combustion gases, and the chimney provides an exit. The temperature difference between the hot smoker and outside air, along with stack height, stack diameter, wind, leaks, and internal resistance, influences draft.
An offset smoker chimney cap should protect the opening without becoming a bottleneck. If it sits too low over the stack, smoke can slow down, the fire may receive less oxygen, and the wood may begin to smolder. Signs of restricted exhaust include thick white or gray smoke, bitter odors, sluggish fire response, smoke escaping from lid gaps, and difficulty maintaining a clean flame.
For most traditional offset-smoking sessions, keep the chimney sufficiently open and control heat primarily with the amount of burning fuel and the firebox intake. Char-Griller’s side-firebox setup guidance starts with the smokestack damper fully open, which shows why establishing draft matters before fine adjustments.
Smoker designs vary, so the owner’s manual stays authoritative for damper position. Our guide on how to control heat in an offset smoker explains how fire size, intake airflow, exhaust flow, weather, and fuel work together.
We don’t chase every small temperature change by repeatedly moving the cap. Offset smokers naturally fluctuate as wood ignites and burns down. Make one small adjustment, allow time for the smoker to respond, and follow the overall temperature trend.
We find accurate monitoring matters more than a fixed cap position. Install an ambient probe at grate level rather than depending entirely on a lid gauge. Our offset smoker thermometer upgrade guide covers probe placement, calibration, and alarm settings.

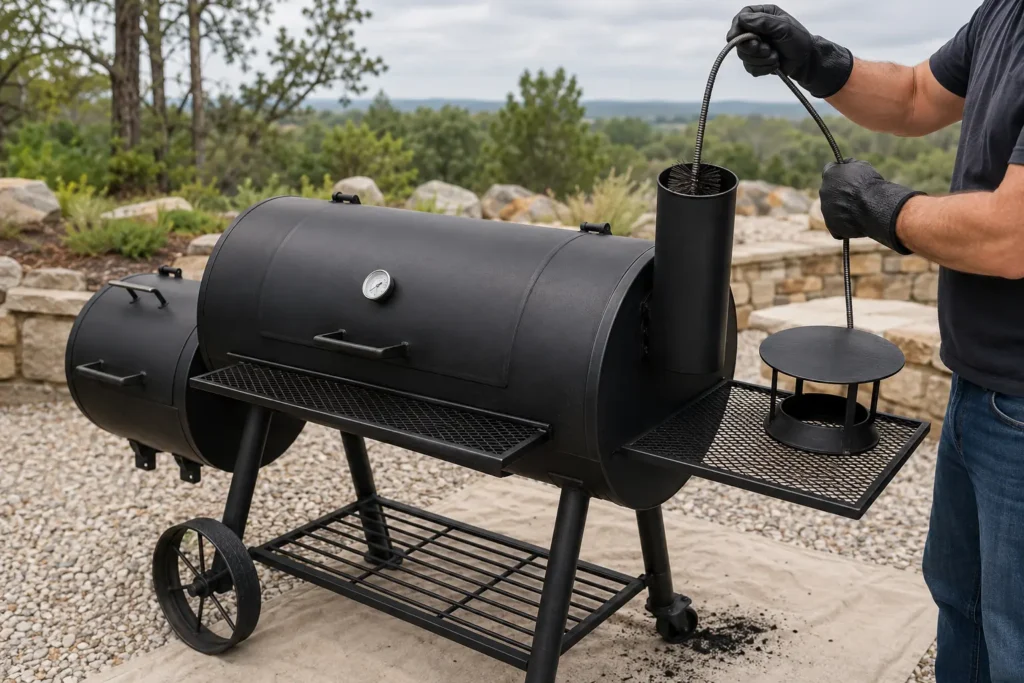

Cleaning and Maintenance
We always let the smoker and offset smoker chimney cap cool completely before inspection or cleaning. Wear suitable gloves because the cap can retain heat and may have sharp edges.
Inspect the mechanism. We check the offset smoker chimney cap for rust, bent parts, loose fasteners, missing retainers, damaged threads, and excessive movement. Confirm that an adjustable cap can open fully and remain in position.
Remove loose residue. We brush away dry soot, ash, insects, leaves, and other debris without forcing material down the chimney. If heavy buildup exists inside the stack, clean the exhaust according to the smoker manufacturer’s instructions.
Clean safely. We use the cleaning method approved for the surface and coating. Avoid leaving water trapped inside the threaded mechanism or beneath brackets. Dry every part thoroughly before reassembly.
Protect exposed steel. We treat early exterior rust with a manufacturer-approved process. Do not apply ordinary household paint, oil, or a flammable coating to a hot exhaust surface.
Check after storms or storage. We re-check the cap after wind events, since insects or birds may place material inside an unused chimney. Inspect the complete smoke path before lighting the smoker after a long break.
Cap care alone won’t cover every maintenance need. Follow our complete guide on how to clean an offset smoker to inspect the cooking chamber, firebox, chimney, grease system, and grates.
Troubleshooting Common Chimney-Cap Problems
| Problem | Likely cause | Practical correction |
| Thick smoke and sluggish fire | Cap too low, chimney blocked, damp fuel, or insufficient intake air | Open exhaust, inspect stack, and use dry seasoned fuel |
| Smoke leaks from lid or firebox | Exhaust restriction or pressure from wind | Check cap clearance and remove chimney obstructions |
| Rain enters the stack | Cap too small, positioned too high, damaged, or affected by strong wind | Use the correct model-specific cap and a smoker cover after cooling |
| Cap will not adjust | Rust, soot, bent rod, damaged thread, or overtightened hardware | Cool, clean, inspect, and replace damaged parts |
| Cap rattles in wind | Loose fastener or missing spring/retainer | Install the correct hardware and tighten to specification |
| Cap repeatedly corrodes | Damaged finish, standing moisture, or unsuitable material | Replace with a compatible corrosion-resistant part |
| Temperature remains unstable | Fire size, fuel, leaks, wind, or poor probe placement | Diagnose the complete system instead of blaming only the cap |
| Bitter flavor develops | Dirty fire or exhaust restriction | Increase clean airflow and avoid trapping smoke |
If airflow is still weak after cleaning and opening the exhaust, inspect the firebox grate, ash level, intake opening, cooking-chamber passage, baffle, and chimney. Our offset smoker fire-management tips explain how fuel condition and combustion quality affect smoke.
Common Mistakes to Avoid
Closing the cap to create more smoke flavor. We avoid this one: heavy trapped smoke is not the same as clean wood flavor. Restricting the exhaust can create incomplete combustion and bitter deposits on the food.
Confusing the cap with the main temperature control. We train ourselves to remember: temperature responds to fire size, fuel, intake air, smoker construction, weather, and exhaust flow. The chimney cap is only one part of the system.
Installing a generic building-chimney cap. We stick with caps made for our smoker: fireplace and stove caps may not fit, tolerate the same environment, or preserve the required exhaust area. Whenever possible, we use a component intended for the exact smoker.
Ignoring model compatibility. We have learned not to trust a “universal” label at face value: a cap advertised that way may still require a specific stack diameter, mounting method, and open clearance. We verify all dimensions before purchase.
Operating with a blocked spark screen. We remind ourselves that fine mesh collects soot and grease more quickly than an open stack, so we inspect and clean it regularly — removing it only when the manufacturer permits.
Cleaning while the smoker is hot. We always wait until the chimney and cap have cooled completely: a metal cap can remain dangerously hot after the cooking chamber begins to cool.
Using the smoker indoors. This is one we never do: an open chimney does not make an offset smoker safe inside a house, garage, tent, vehicle, or other enclosed space. The U.S. Consumer Product Safety Commission warns that burning charcoal indoors can produce deadly carbon monoxide. We always operate the smoker outdoors according to the manufacturer’s clearance instructions.
Using an offset smoker chimney cap to solve an unrelated problem. We keep the cap’s job in perspective: uneven cooking temperatures, weak fires, leaking doors, wet wood, inaccurate thermometers, and undersized fireboxes require separate solutions. We always start with the complete smoker system.
If your smoker has a separate firebox, our offset smokers with side firebox guide explains the correct relationship between fuel, intake airflow, cooking chamber, and exhaust.
Frequently Asked Questions
The chimney should normally remain sufficiently open for clean exhaust flow. Begin with it open when starting the fire and follow the smoker manufacturer’s instructions for any later adjustment. Avoid closing it tightly to trap smoke.
Not always. A cap primarily shields the opening from rain and debris, while a damper changes the exhaust opening. Some smokers combine both functions in one adjustable assembly.
A smoker can exhaust through an open stack, but a compatible cap is useful for weather and debris protection. Replace a missing cap when the manufacturer designed the smoker to use one.
A correctly designed cap can preserve the intended exhaust path and reduce certain wind effects, but it does not automatically create stronger draft. Stack dimensions, fire temperature, intake airflow, wind, leaks, and internal restrictions remain important.
There is no universal gap for every smoker. Use the cap and smoker manufacturer’s specified open clearance. The gap must provide enough exhaust area without making the cap unstable or ineffective against rain.
Only when its diameter, material, heat rating, mounting method, and exhaust clearance are compatible with your smoker. A model-specific factory part is generally safer and easier to install.
Some leakage is common on inexpensive smokers, but heavy leakage may indicate a restricted stack, cap positioned too low, excessive fuel, wind pressure, or poor seals. Fully open and inspect the exhaust before making other changes.
The correct temperature depends on the food and recipe. Many low-and-slow cooks use approximately 225°F to 275°F, while the USDA recommends monitoring smoker air temperature and keeping it between 225°F and 300°F when smoking meat and poultry in its smoking safety guidance. Use our offset smoker cooking-temperature guide for detailed cooking ranges.
Inspect it before each cook and clean it whenever soot, grease, insects, or debris begin to restrict movement or exhaust flow. Perform a more thorough inspection after long storage or severe weather.
Replace it when rust has weakened the metal, the cap no longer stays attached, the adjustment mechanism has failed, the part is badly bent, or the correct exhaust clearance cannot be maintained.
Why an Offset Smoker Chimney Cap Is Worth Installing
An offset smoker chimney cap is a small but useful part of the exhaust system. It protects the stack from rain and debris and may form part of the adjustable chimney damper — but, in our book, it should never obstruct clean smoke flow.
When we shop for one, we choose a heat-safe cap designed for the exact stack diameter and mounting system. We maintain the manufacturer’s required clearance, secure every fastener, and test the smoker with a small clean fire after installation. During cooking, we manage temperature mainly through fire size and intake airflow while keeping the chimney sufficiently open.
Regular inspection, cleaning, rust treatment, and safe outdoor operation will help the offset smoker chimney cap perform reliably without creating a bottleneck. When the firebox, cooking chamber, fuel, thermometer, and exhaust all work together, the smoker can produce steadier heat and cleaner barbecue flavor — and that is exactly what we are after.
